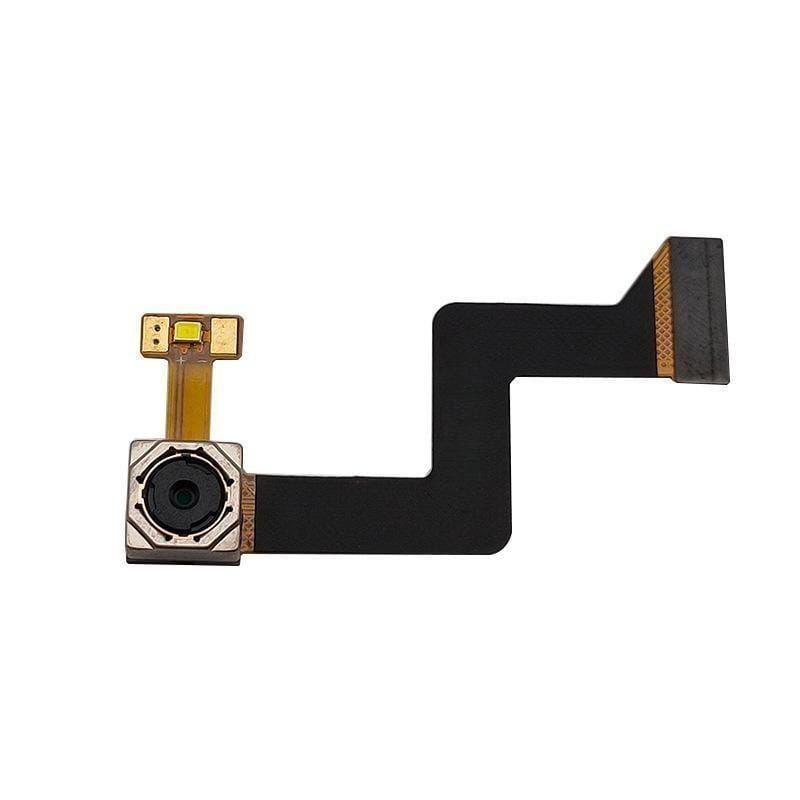

5MP 1/4″ OV5640 AutoFocus MIPI DVP Parallel Camera Module,1.4 µm x 1.4 µm pixel with OmniBSI technology for high performance (high sensitivity, low crosstalk, low noise, improved quantum efficiency), support AEC, AWB, ABF, and ABLC.
| NO | Item | Specification |
| 1 | Module No. | VM-T300-VD2.3 |
| 2 | Image Sensor | OV5640 |
| 3 | Interface | DVP |
| 4 | Effective Pixel | 2592 x 1944 |
| 5 | Material | FPC |
| 6 | Focus | Auto Focus |
| 7 | Weight | 16g |
| 8 | Application | Laptops, Tablets, Computers, Smartphones, Cameras, Drone, Security Cameras, Dash Cams, Action Cameras, Surveillance, Smart Home, Recognition System, and so on. |
Sensor Feature
⦁ 1.4 µm x 1.4 µm pixel with OmniBSI technology for high performance (high sensitivity, low crosstalk, low noise, improved quantum efficiency)
⦁ Optical size of 1/4″
⦁ Automatic image control functions: automatic exposure control (AEC), automatic white balance (AWB), automatic band filter (ABF), automatic 50/60 Hz luminance detection, and automatic black level calibration (ABLC)
⦁ Programmable controls for frame rate, AEC/AGC 16-zone size/position/weight control, mirror and flip, cropping, windowing, and panning
⦁ Image quality controls: color saturation, hue, gamma, sharpness (edge enhancement), lens correction, defective pixel canceling, and noise canceling
⦁ Support for output formats: RAW RGB, RGB565/555/444, CCIR656, YUV422/420, YCbCr422, and compression
⦁ Support for video or snapshot operations
⦁ Support for internal and external frame synchronization for frame exposure mode
⦁ Support for LED and flash strobe mode
⦁ Support for horizontal and vertical sub-sampling, binning
⦁ Support for minimizing artifacts on the binned image
⦁ Support for data compression output
⦁ Support for anti-shake
⦁ Standard serial SCCB interface
⦁ Digital video port (DVP) parallel output interface and dual lane MIPI output interface
⦁ Embedded 1.5V regulator for core power
⦁ Programmable I/O drive capability, I/O tri-state configurability
⦁ Support for black sun cancellation
⦁ Support for images sizes: 5 megapixels, and any arbitrary size scaling down from 5 megapixels
⦁ Support for autofocus control (AFC) with embedded AF VCM driver
⦁ Embedded microcontroller
⦁ Suitable for module size of 8.5 x 8.5 x <6mm with both CSP and RW packaging
| NO | Item | Specification |
| 1 | Image Sensor | OV5640 |
| 2 | Lens Size | 1/4″ |
| 3 | Effective Pixel | 2592 x 1944 |
| 4 | Image Area | 3673.6 µm x 2738.4 µm |
| 5 | Pixel Size | 1.4 µm x 1.4 µm |
| 6 | Output Formats | 8-/10-bit RGB RAW output |
| 7 | Lens Chief Ray Angle | 24° |
| 8 | Max S/N Ratio | 36 dB (maximum) |
| 9 | Dynamic Range | 68 dB @ 8x gain |
| 10 | Maximum Image Transfer Rate | QSXGA (2592×1944): 15 fps 1080p: 30 fps 1280×960: 45 fps 720p: 60 fps VGA (640×480): 90 fps QVGA (320×240): 120 fps |
| 11 | Sensitivity | 600 mV/Lux-sec |
| Shtter | Rolling Shutter / Frame Exposure | |
| 12 | Maximum Exposure Interval | 1964 x tROW |
| 13 | Dark Current | 8 mV/s @ 60°C Junction Temperature |
| 14 | Working Temperature | —30°C to 70°C |
| 15 | Stable Temperature | 0°C to 50°C |
| 16 | Power Supply | core: 1.5V ± 5% (With Embedded 1.5V Regulator) analog: 2.6 ~ 3.0V (2.8V Typical) I/O: 1.8V / 2.8V |
| 17 | Power Requirements | Active: 140 mA Standby: 20 µA |
