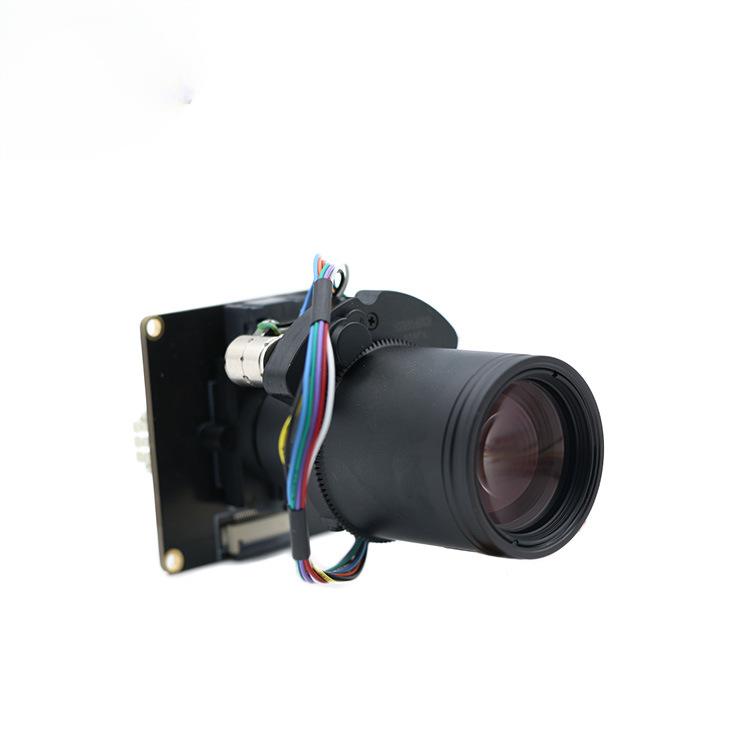

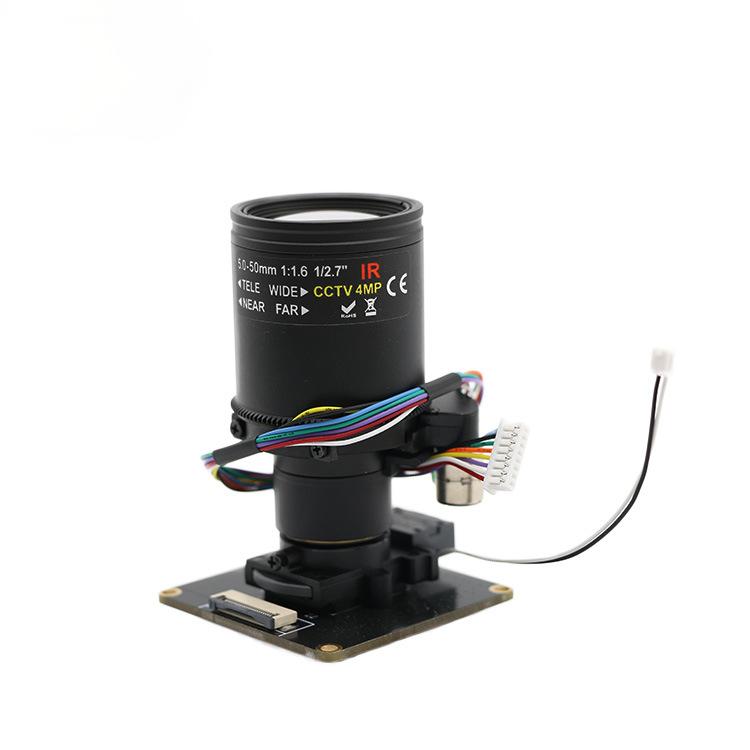

48MP IMX586 Sensor 10x Optical Zoom MIPI Interface Camera Module
This advanced camera module integrates a 48MP Sony IMX586 sensor, delivering exceptional image quality with high dynamic range (HDR) and low-light performance. The 10x optical zoom ensures lossless magnification for distant subjects, while the MIPI (CSI-2) interface guarantees high-speed data transfer, ideal for embedded vision applications like drones, smartphones, and IoT devices. The module supports 4K video recording, PDAF (Phase Detection Autofocus), and features a compact, plug-and-play design for versatile use in industrial and consumer electronics.
| NO | Item | Specification |
| 1 | Module No | VM-XLS481828S |
| 2 | Sensor Type | 1/3.1 IMX586 |
| 3 | Pixel Size | 0.8μm(H)×0.8μm(V) |
| 4 | Effective Pixel | 8000 (H) × 6000 (V)48 megapixels*2 |
| 5 | Interface | MIPI |
| 6 | Zoom | Optical Zoom 10X |
| 7 | FOV | 90 degree（customized） |
| 8 | Focus | Auto Focus/Fixed Focus |
| 9 | Auto Control | Saturation, contrast, sharpness, white balance, exposure |
| 10 | System | Windows XP，Vista，Android,Mac, Linux |
| 11 | storage temperature | -30˚C to +80 ˚C |
| 12 | Operating temperature | -20˚C to +70˚C |
