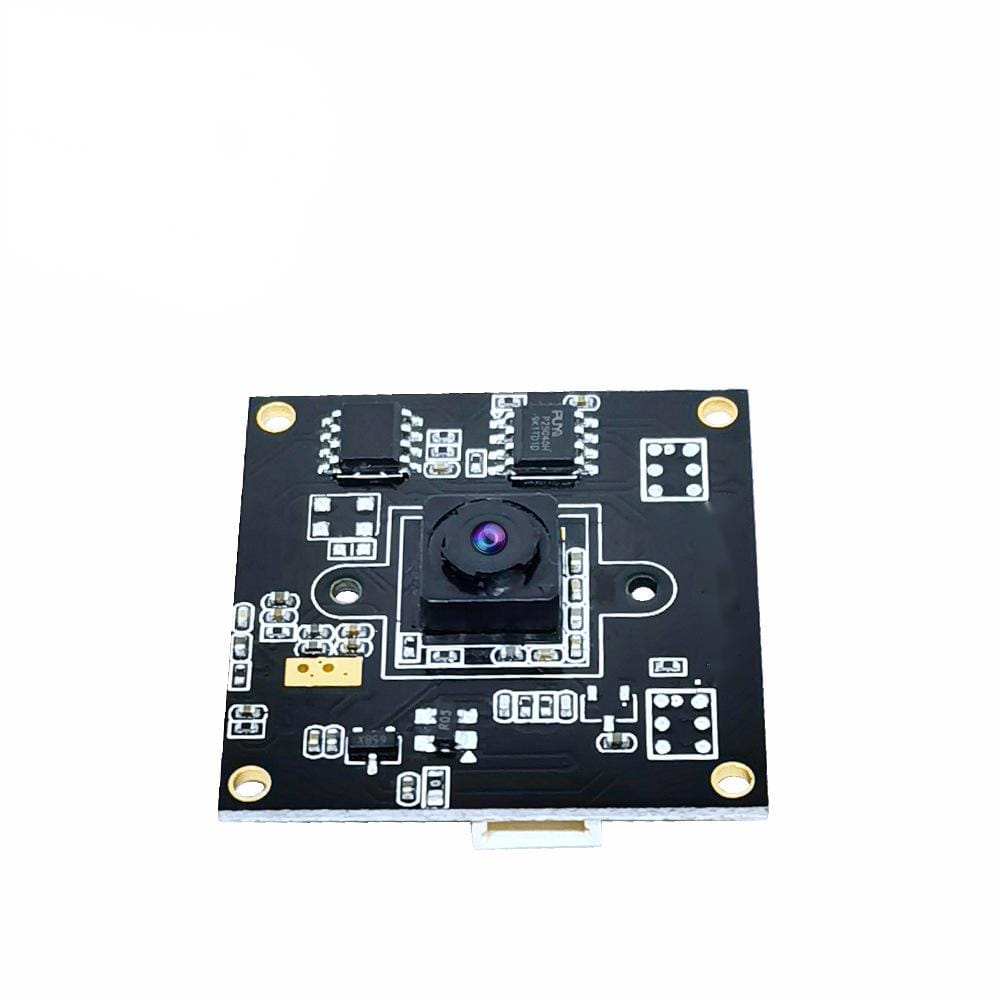

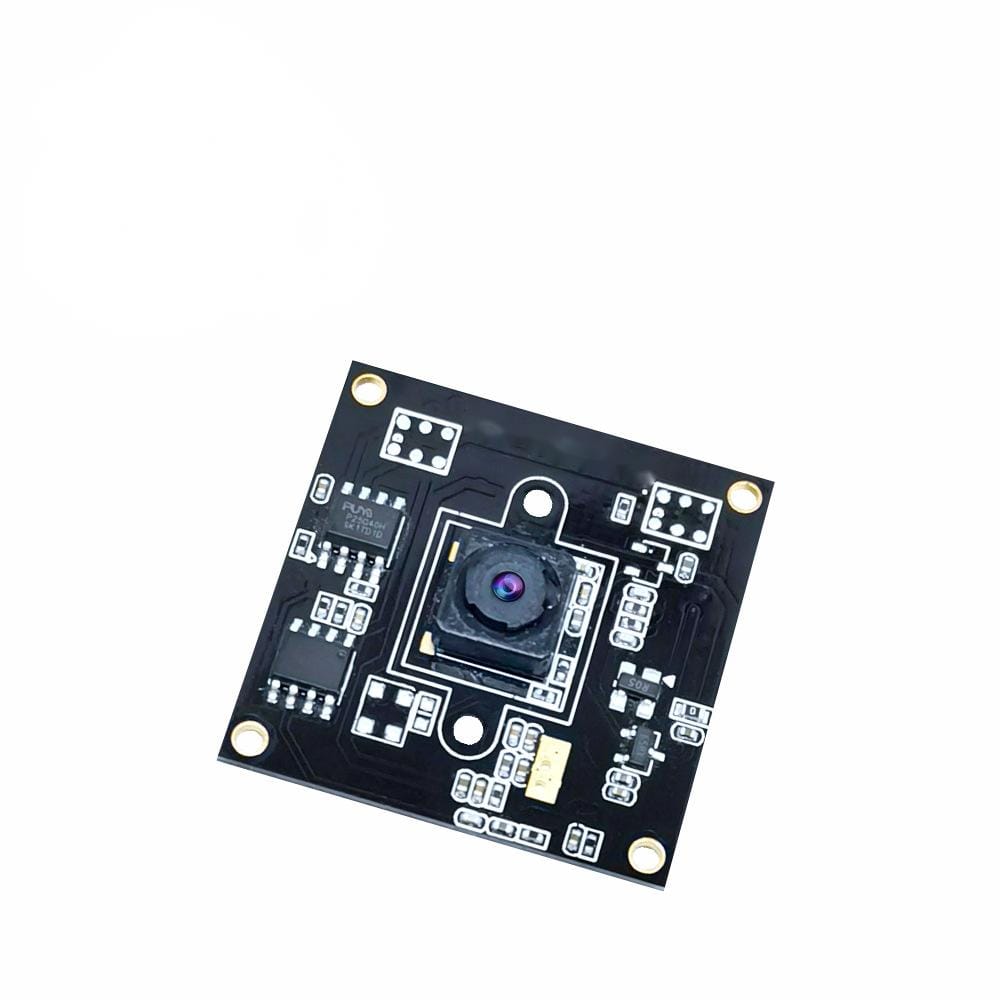

5MP 1/4 Inch OV5648 USB Camera Module Small Size

Feature
• 5-megapixel OV5648 sensor
• 2592×1944 resolution
• USB interface, UVC protocol, auto focusing, driver-free, plug-and-play
• High Speed USB2.0 Interface
• Small outline for embedded Application
• OTG support,UVC compliance for use in OS Windows,Linux,Androdi,Mac

5MP 1/4 Inch OV5648 USB Camera Module, 2592×1944 resolution, USB interface, UVC protocol, auto-focusing, driver-free, plug-and-play, High-Speed USB2.0 Interface, Small outline for embedded Application, OTG support, UVC compliance for use in OS Windows, Linux, Android, Mac.

NO Item Specification
1 Module No. VM-U505
2 Image Sensor 1/4 Inch, OV5648
3 Image Area 3673.6 um x 2738.4 um
4 Effective Pixel  2592X1944
5 Output Format MJPEG / YUV2(YUYV)
6 Dynamic Range 72db@8X gain
7 Sensitivity 690mV/lux-sec
8 Frame Rate 30fps
9 S/N Radio 36db
10 Shutter Type Electronic Rolling Shutter
11 Dimention 32mm*32mm±0.2
12 Support Drive – Free Protocols USB2.0 OTG
13 Interface USB2.0 High Speed
14 Auto White Balance Support
15 Auto  Gain Control Support
16 Auto Exposure Control Support
17 Adjustable Parameter Brightness, Contrast Ratio, Color Saturation, Tone, Gamma, White Balance, Negative Contrast, Exposure Degree
18 Lens HD/Auto Focus
19 Powrer Support USB BUS POWER
20 Working Temperature —20℃ ~ 70 ℃
21 Working Voltage DC5V
22 Storage Temperature 0~50℃
23 System Support Win XP/Android/IOS/Linx and Other
