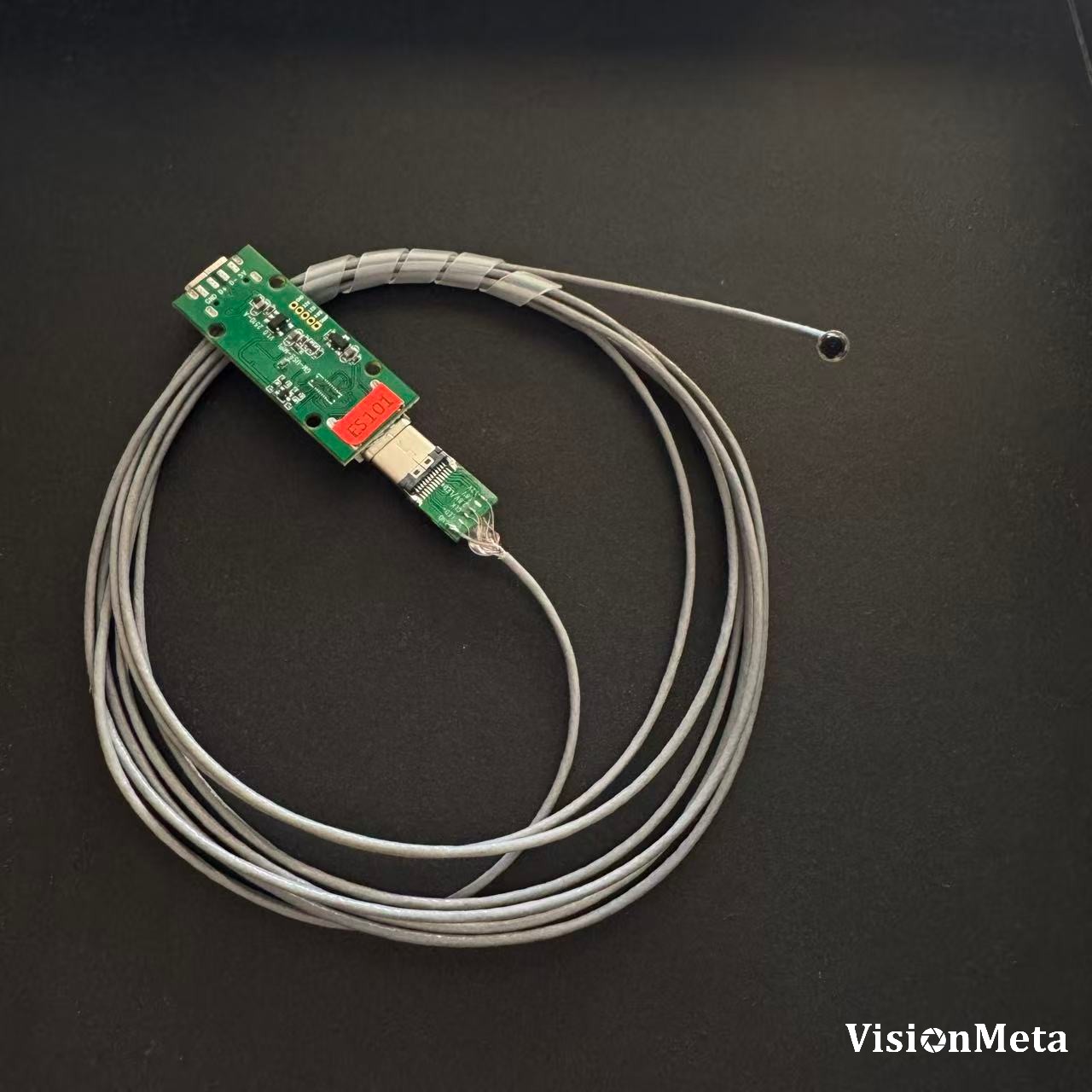

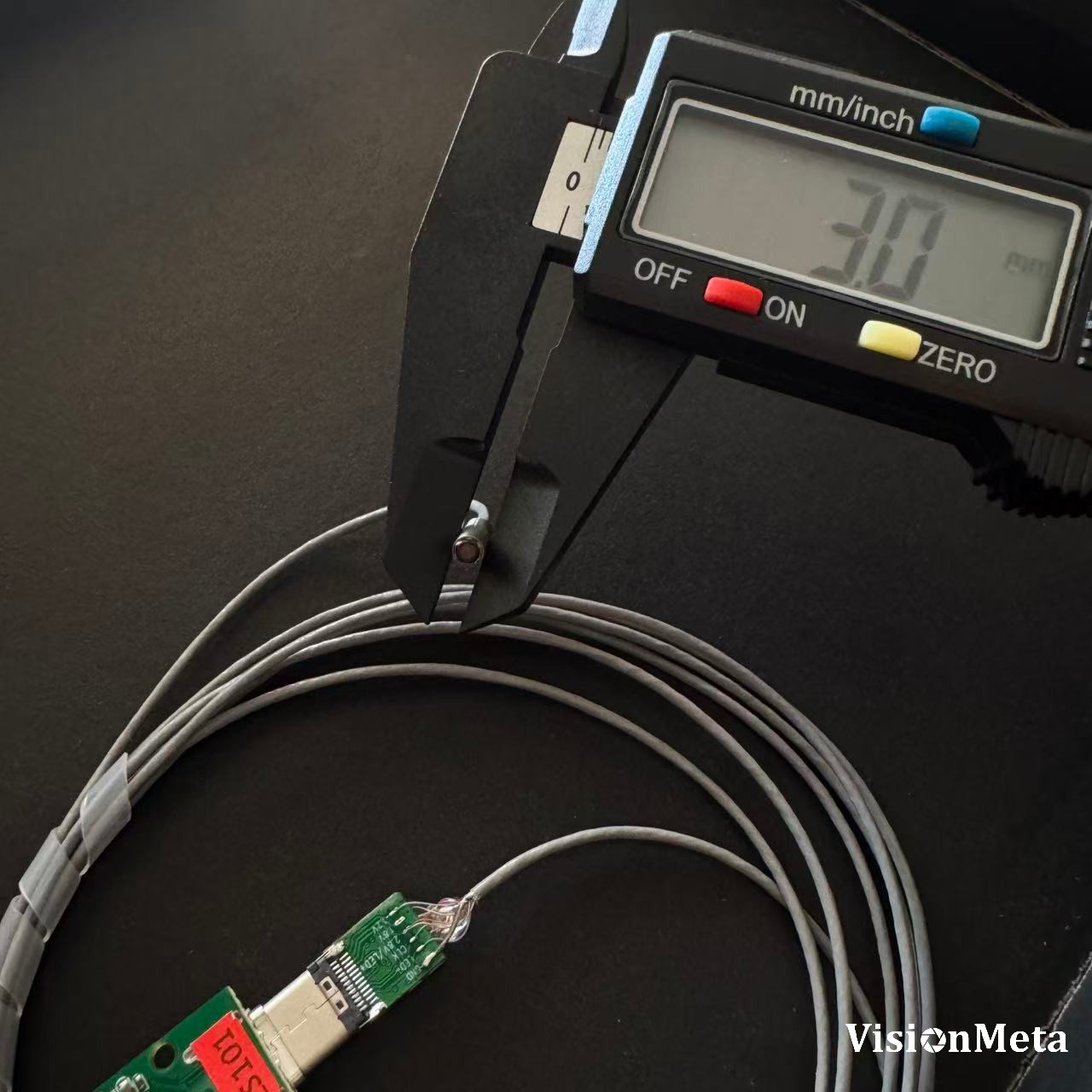

3.0mm ES101 1MP Medical Endoscope Module HD Imaging for Medical
The ES101 Medical Endoscope Module represents a significant advancement in portable and accessible medical imaging. This 1-megapixel (1MP) USB endoscope camera is meticulously designed as a core component for modern medical devices, providing the high-quality imaging essential for effective visual diagnostics and a range of minimally invasive procedures.
Crafted with patient safety as a priority, the module utilizes medical-grade, biocompatible materials. Its compact form factor and a slim, maneuverable shaft allow healthcare professionals to navigate anatomical pathways with minimal patient discomfort. The ES101 is versatile in its deployment, engineered to be reliably sterilised for repeated use or to serve as an affordable, high-performance disposable endoscope module, effectively reducing cross-contamination risks.

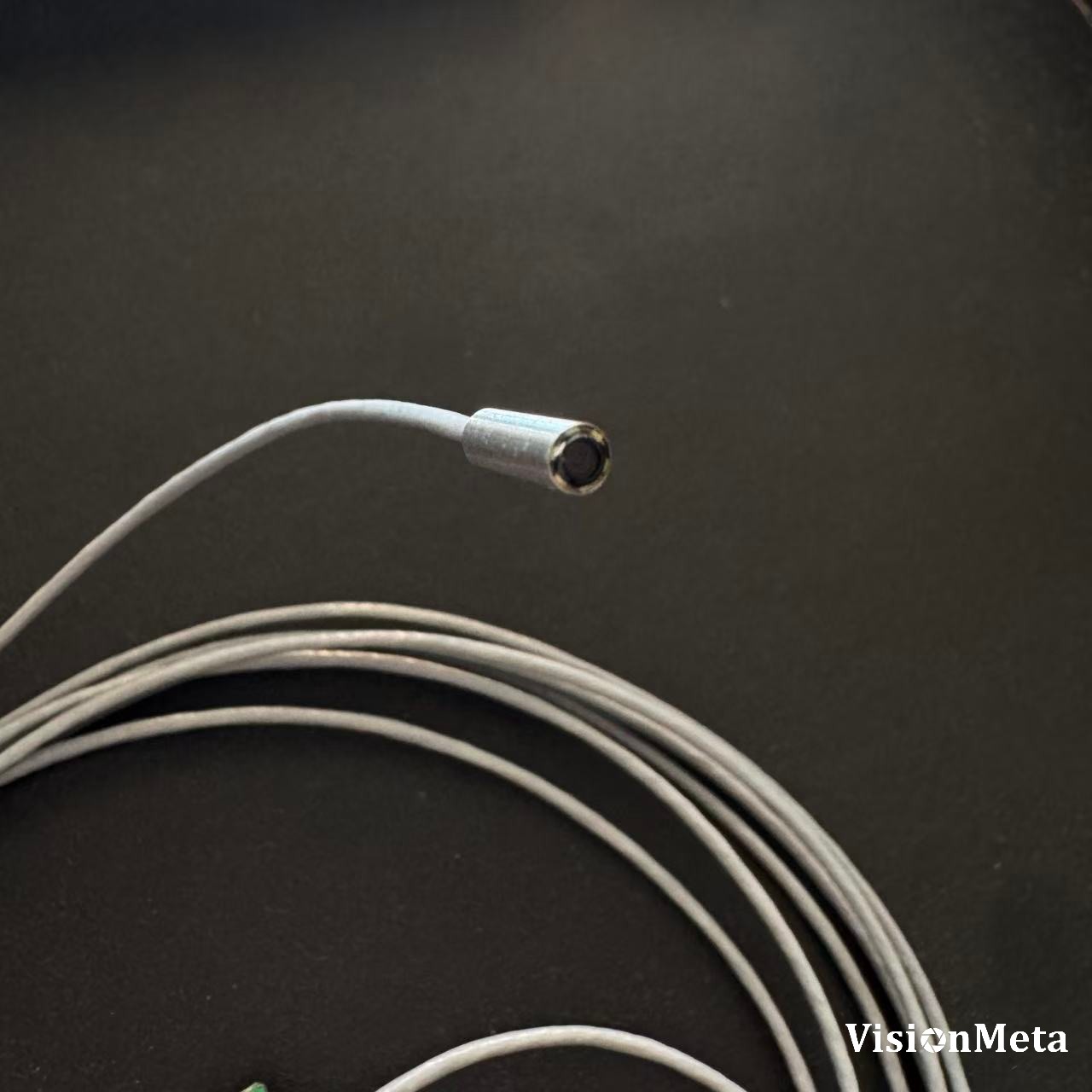

At the heart of the module is a sensitive 1MP CMOS sensor that captures crisp, high-resolution still images and smooth, real-time video. This clarity is crucial for precise medical diagnosis, whether in gastroenterology, urology, ENT, or other surgical specialties. The distal tip features a ring of adjustable, cool LEDs that deliver bright, even illumination into body cavities, ensuring a clear field of view without the concern of tissue heating.
With a standard USB output, this embedded vision solution offers unparalleled ease of integration. It can be directly connected to medical carts, PCs, or dedicated monitors, facilitating efficient procedure documentation and enhancing clinical workflows. The ES101 Medical Endoscope Module is the ideal choice for medical device OEMs and healthcare providers seeking to develop or utilize innovative, image-guided tools that improve patient outcomes.
| Optical Dimensions | 1/9 inch | Dark current @ 60 ⁰C | ＜1e/frame |
| effective pixel array | 1000 H × 1000 V | Signal-to-noise ratio (max) | 37.2 dB |
| Pixel Size | 1.4 μm×1.4 μm | dynamic range | 72 dB |
| effective photosensitive area | 1400 μm×1400 μm | Output Interface | 1lane MIPI/LVDS |
| Highest Frame Rate | 80@full frame | Data Format | 10 bit/8 bit RAW |
| optical filter array | Bayer RGB/BW | Power supply | 1.1/2.8 VDC |
| CRA | 30° | Power consumption | 35 mW@60 fps |
| Exposure mode | Electronic Rolling | junction temperature range | -30~60 ⁰C |
| Sensitivity | 0.92 V/Iux.s | Encapsulation form | 12 PIN CSP |
ES01 Sensor from BRIGATES MICROELECTRONICS
