2MP GC2053 Camera Module 1080P USB 30fps 90 ° FOV
The camera module is based on Galaxy Core GC2053 high-quality 1080P CMOS image sensor. The sensor has a 1/2.9-inch optical format, which combined with the pixel size of 2.8 µm x 2.8 µm, results in the 2.0 Megapixel 1920H x 1080V resolution.
Fixed Focus with a wide view angle of 90 degrees and no distortion, and more lens FOV for options according to your demand.
This device has an image array capable of operating at up to 30fps high frame rate at full resolution with complete user control over image quality, formatting, and output data transfer.
It is a UVC-compliant camera module. It works with Windows, Linux, and Mac OS operation systems.
Widely used in Teleconferencing Systems, Video Meetings, Artificial Intelligence (AI), Robotics, Internet of things (IoT), Machine Vision, Industrial Automation, Computer Vision, Surveillance, Educational Equipment, Medical Imaging, Agro-technological, Embedded devices, Traffic Monitoring, etc.
| NO | Item | Specification |
| 1 | Module No. | VM-D2053H |
| 2 | Image Sensor | 1/2.9 Inch GC2053 |
| 3 | Pixel Size | 2.8um x 2.8um |
| 4 | FOV | 90 ° |
| 5 | Color | RGB |
| 6 | Effective Pixel | 2592 x 1944 (2MP) |
| 7 | Output Format | MJPEG, YUY2 |
| 8 | Support Resolution and Frame Rate | MJPG: 1920*1080@ 30FPS 1280*720 @ 30FPS 1024*768@ 30FPS |
| 9 | Focal Length | 3.24mm |
| 10 | Object Distance | 2cm~~∞ |
| 11 | Focus | Fixed Focus |
| 12 | Interface | USB2.0 4PIN 2.0mm Socket |
| 13 | Controllable Parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure |
| 14 | Working Temperature | -10℃ ~ 70℃ |
| 15 | Voltage | DC 5V |
| 16 | Maximum Power Consumption | 300mW |
| 17 | Module Size | 30mm*25mm |
| 18 | System Support | Win XP/Vista/Win7/Win8 / Linux with UVC (above linux-2.6.26) MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC |

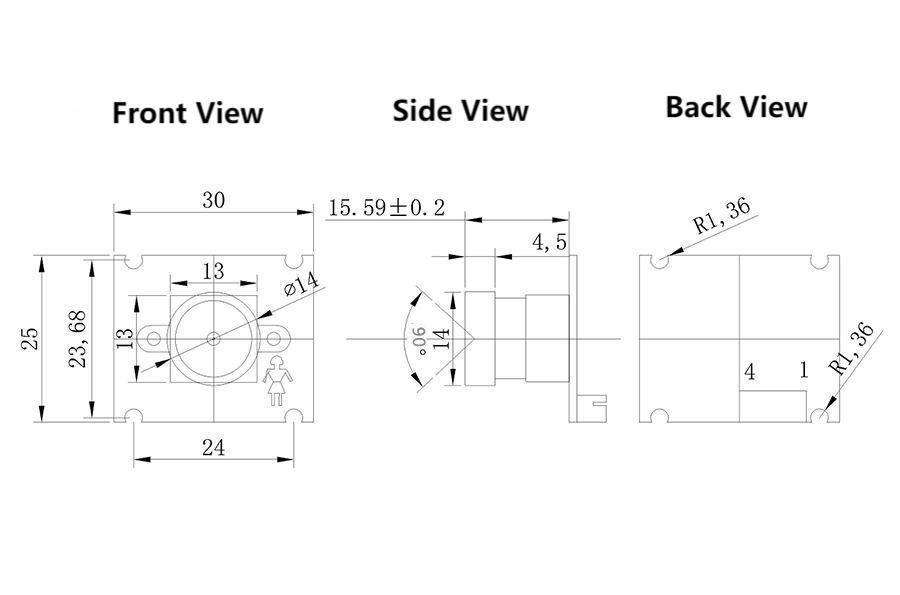

Structure Diagram
