1MP 4mm OV9734 Side-View Endoscope Camera
- High-Resolution 1MP OV9734 Sensor: Capture still images and video with 1280×720 resolution. The OV9734 chip provides excellent image clarity and color reproduction, ensuring you don’t miss critical details.

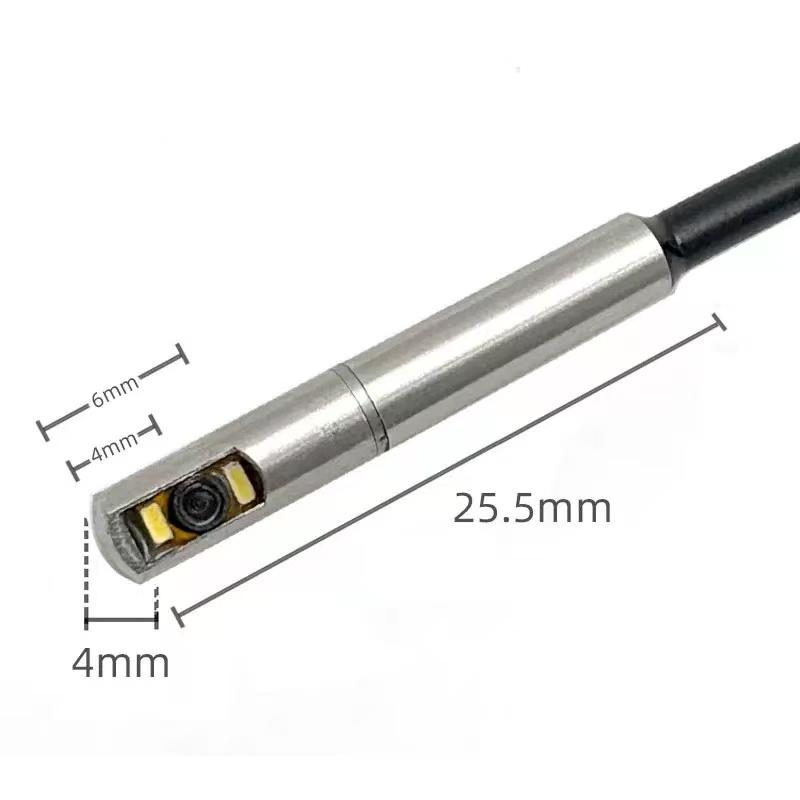

- 4mm Ultra-Slim Side-View Design: The compact 4mm camera head and 90-degree side-view allow you to navigate narrow gaps, pipes, and internal components with ease, providing a view perpendicular to the insertion direction.
- Durable & Reliable Construction: Built with industrial-grade materials, the camera cable is resistant to water, oil, and wear, making it suitable for demanding environments like machinery inspection and automotive repair.

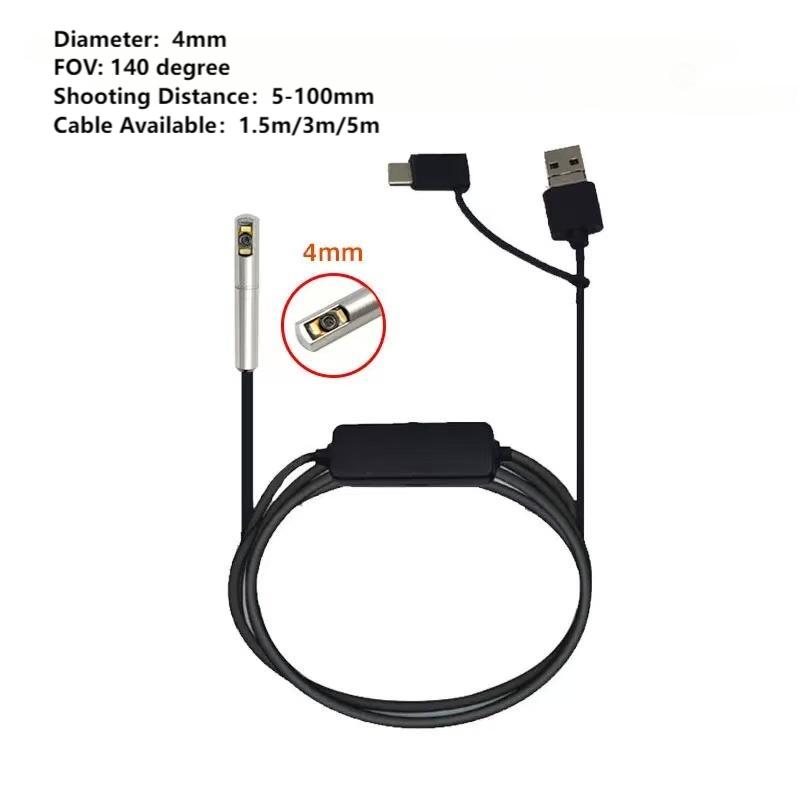

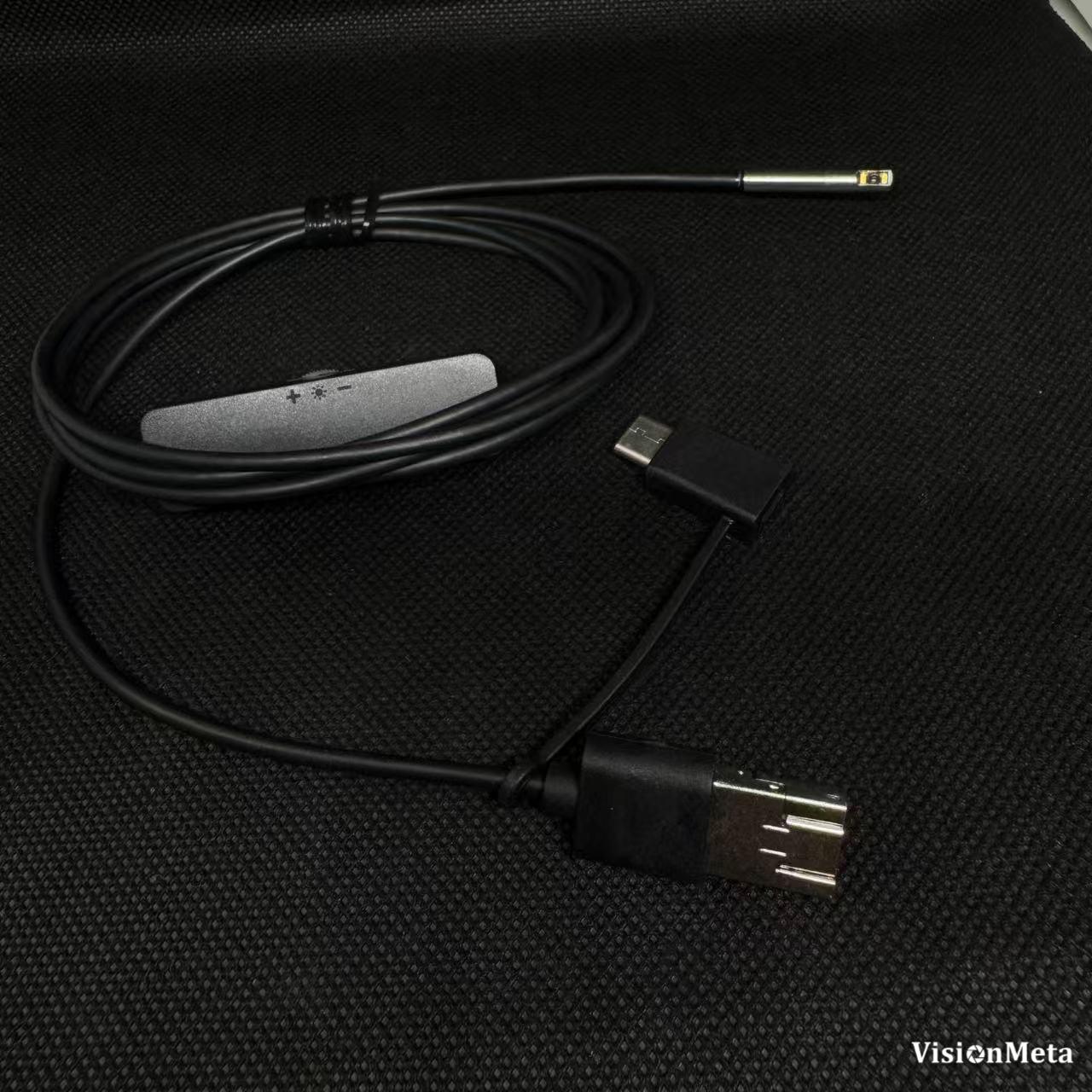

- Versatile USB Connectivity: Easily connects to Windows, Mac, and Android devices (with OTG support). A plug-and-play solution that works seamlessly with popular inspection software.
- 2 Adjustable LED Lights: Built-in LEDs surrounding the lens provide adjustable brightness to illuminate dark cavities, ensuring a clear picture even in zero-light conditions.
| NO | Item | Specification |
| 1 | Module NO. | VM-YSV9734C |
| 2 | Sensor | OV9734 |
| 3 | Lens Size | 1/9″ |
| 4 | Maximum Pixels | 1MP |
| 5 | Maximum Effective Resolution | 1280X720 |
| 6 | Data Format | MJPG/YUV2 |
| 7 | Diameter | 4.0mm |
| 8 | Tube Length | 25.5mm |
| 9 | Pixel Size | 1.4um*1.4um |
| 10 | Dynamic Range | 68dB |
| 11 | S/N Ratio | 44dB |
| 12 | Min Lux | 0.03Lux |
| 13 | Relative Illumination (Sensor) | 55% |
| 14 | Lens FOV | 140° |
| 15 | F/No | 4.7±5%mm |
| 16 | EFL | 1.03±5% mm |
| 17 | DOF | 5mm-100mm |
| 18 | Lens Construction | 3P+IR |
| 19 | Focus | Auto Focus |
| 20 | Frame Rate | MJPG： 640X480 (30fps) 960X720 (30fps) 1280X720 (30fps) YUV2： 640X480 (30fps) 960X720 (15fps) 1280X720 (10fps) |
| 21 | IR Filter | 650±10nm |
| 22 | TV DistortionfiS | <-1% |
| 23 | UVC | USB Video Class(UVC) |
| 24 | OTG | USB2.0 OTG |
| 25 | Voltage | 3.3V |
| 26 | Working Current | 70mA |
| 27 | AGC/AEOWhiter balance | Auto |
| 28 | Working Temperature | -10°C to 70°C |
| 29 | Storage Temperature | -20°C to 80°C |
| 30 | System Compatibility | Windows 2000 or Windows XP or Vista of Windows7/8/10 MAC OSX El captain 10.114 and Luinx Android |
