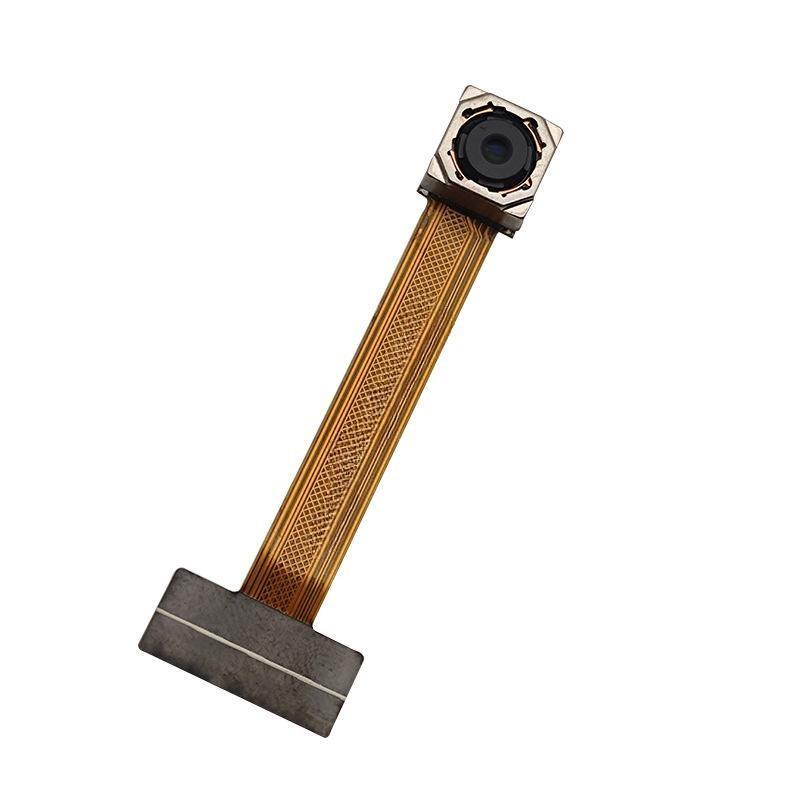

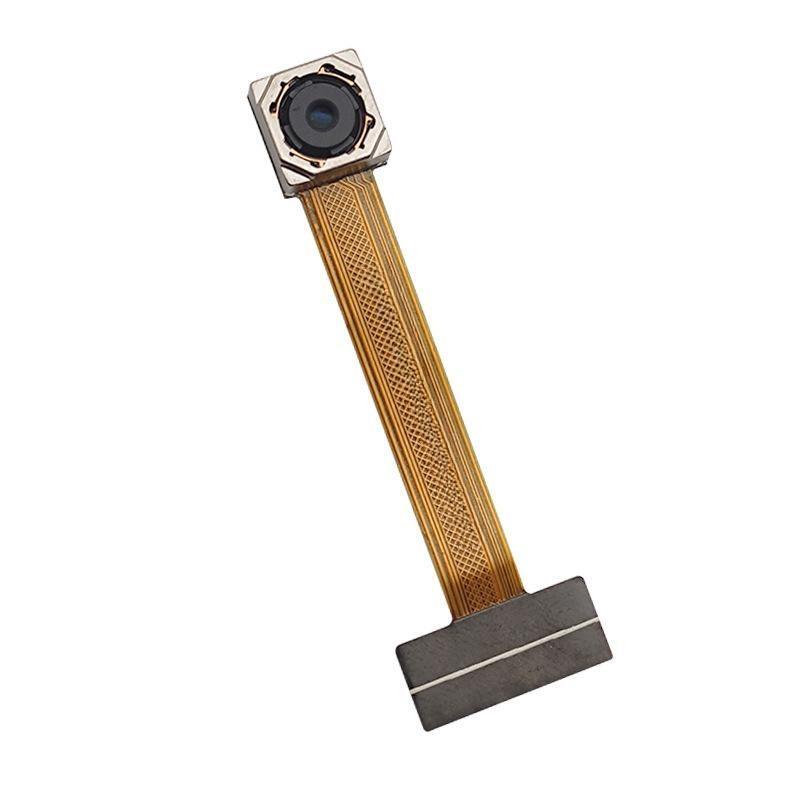

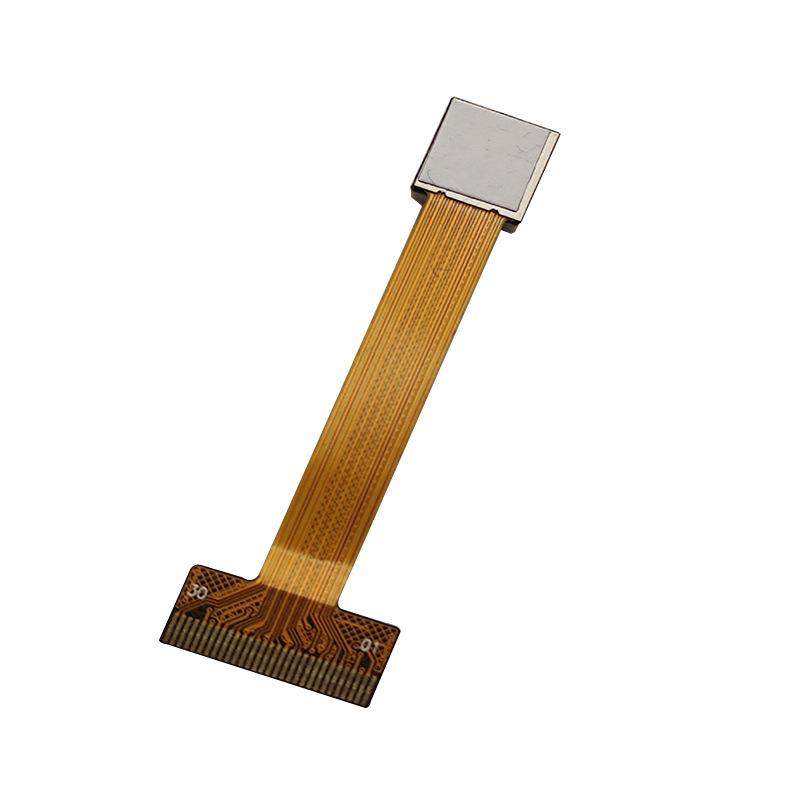

13MP MIPI OV13850 Camera Module delivers 30frames per second (fps) for zero shutter lag and can best-in-class high- and low-light performance, as well as dramatically reduced power consumption.
Additionally, it operates at the seamless transition between recording video and capturing still images. It also supports 4K 2K ultra-high definition video at 30 fps with a full- horizontal field of view(FOV)and electronic image stabilization (EIS), as well as high frame rate 1080p HD video at 60 fps with EIS to enable high-quality video.
All that functions make it ideally suited for feature-rich mobile devices.
| NO | Item | Specification |
| 1 | Module No. | VM-ZV-2277-VF1.2 |
| 2 | Image Sensor | OV13850 |
| 3 | Interface | MIPI |
| 4 | Effective Pixel | 4224*3136 |
| 5 | Material | FPC |
| 6 | Focus | Auto Focus |
| 7 | Weight | 20（g） |
| 8 | Application | Laptops, Tablets, Computers, Smartphones, Cameras, Drone, Security Cameras, Dash Cams, Action Cameras, Surveillance, Smart Home, Recognition System, Medical Equipment and so on. |
Sensor Feature
⦁ 1.12 µm x 1.12 µm pixel with OmniBSI-3™ technology
⦁ Optical size of 1/3.06″
⦁ 31.2° CRA for <6mm z-height
⦁ Programmable controls for frame rate, mirror and flip, cropping, and windowing
⦁ Support for image sizes: 13.2MP (4224×3136), 10MP (16:9 – 4224×2376), 4K2K (3840×2160), EIS 1080p (2112×1188), EIS 720p (1408×792), and more
⦁ Two-wire serial bus control (SCCBd compression
⦁ 13.2MP at 30 fps
⦁ Strobe output to control flash
⦁ 8kbits of embedded one-time programmable (OTP) memory
⦁ Two on-chip phase lock loops (PLLs)
⦁ Frame exposure mode for still image (with mechanical shutter)
⦁ Programmable controls: gain, exposure, frame rate, image size, horizontal mirror, vertical flip, cropping, and panning
⦁ Image quality controls: defect pixel correction, automatic black level calibration, lens shading correction, and alternate row HDR
⦁ Built-in temperature sensor
⦁ Suitable for module size of 8.5 mm x 8.5 mm x <6mm
| NO | Item | Specification |
| 1 | Image Sensor | OV13850 |
| 2 | Lens Size | 1/3.06″ |
| 3 | Effective Pixel | 4224×3136 |
| 4 | Image Area | 4815 µm x 3678.3 µm |
| 5 | Pixel Size | 1.12 µm x 1.12 µm |
| 6 | Output Formats | 10-bit RGB RAW |
| 7 | Output Interface | MIPI |
| 8 | Lens Chief Ray Angle | 31.2° |
| 9 | Max S/N Ratio | TBD |
| 10 | Dynamic Range | TBD |
| 11 | Maximum Image Transfer Rate | 30fps |
| 12 | Sensitivity | TBD |
| 13 | Dark Current | TBD |
| 14 | Working Temperature | —30°C to 85°C |
| 15 | Stable Temperature | 0°C to60°C |
| 16 | Power Supply | analog: 2.6 ~ 3.0V (2.8V nominal) core: 1.14 ~ 1.26V (1.2V nominal) I/O: 1.7 ~ 3.0V (1.8V or 2.8V nominal) |
| 17 | Power Requirements | active: 223mW standby: 300µW XSHUTDOWN: 1µW |

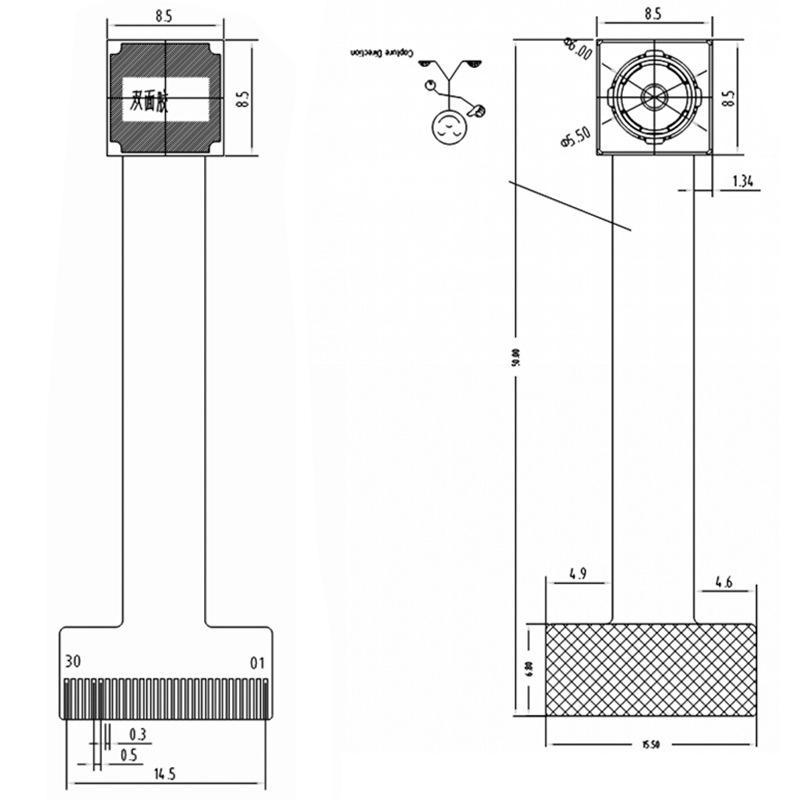

Structure Diagram
