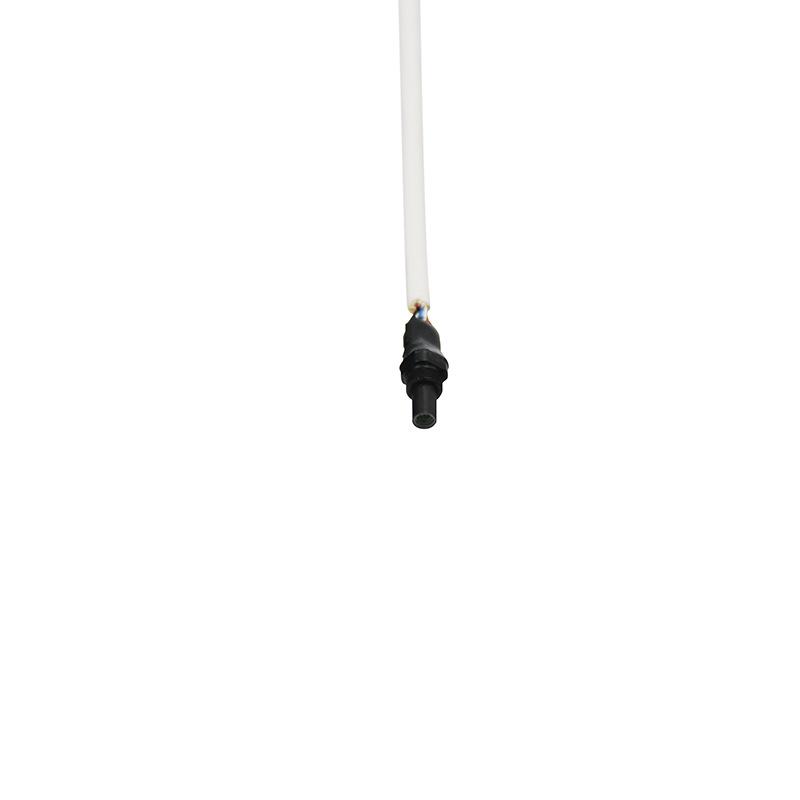

2MP 3mm OV2740 Micro USB Endoscope Module 160° FOV 80mm DOV
This endoscope is very micro 3mm diameter with a 1/6” OV2740 sensor, HD 1080P 2MP,1920*1080 resolution, and output high-quality image.

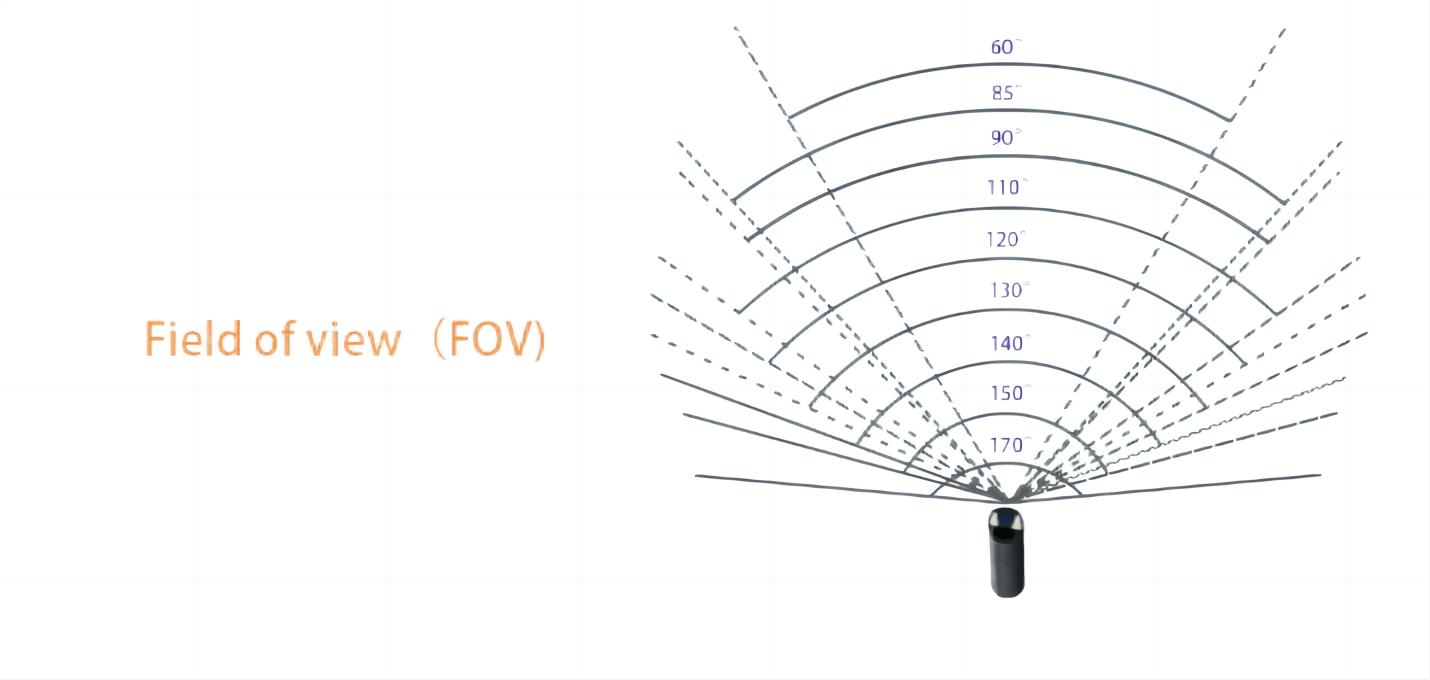

160° FOV and 3mm-80mm depth of field.
Highly waterproof and oilproof with IP67 level.
It is widely used in medical areas, like colonoscopy, laparoscopy, duodenscope, tooth cavity endoscope, laryngoscope, colonoscope, gastroscope, 3D laparoscopy.
| NO | Item | Specification |
| 1 | Module NO. | VM-LD001-V1 |
| 2 | Sensor | OV2740 |
| 3 | Lens Size | 1/6” |
| 4 | Maximum Pixels | 2MP |
| 5 | Maximum Effective Resolution | 1920*1080 |
| 6 | Data Format | MJPG ,YUY2 |
| 7 | Resolution @ Frame Rate | MJPEG: 1920*1080@60fps 1280×720@60fps 800*600@60fps 640X480@60fps YUY2: 1920*1080@5fps 1280×720@5fps 800*600@15fps 640X480@30fps |
| 8 | Pixel Size | 1.4um*1.4um |
| 9 | Lens Size | 3.0mm |
| 10 | Module Size | L4.8*W4.4*TH 1.8mm |
| 11 | Package Lens Length | 13mm |
| 12 | FOV | 155±5° |
| 13 | Depth of Field | 3 -80mm |
| 14 | Interface | USB |
| 15 | Tperature (Operation) | -30°C to 70°C |
| 16 | Temperature (Stable Image) | 0°C to 50°C |

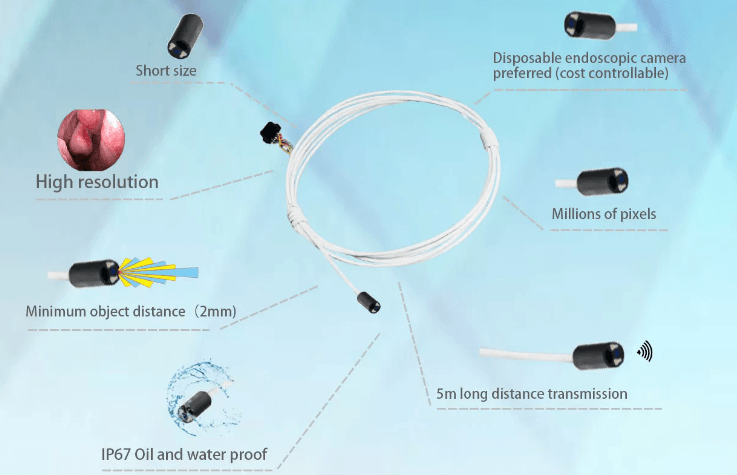

Feature
Application

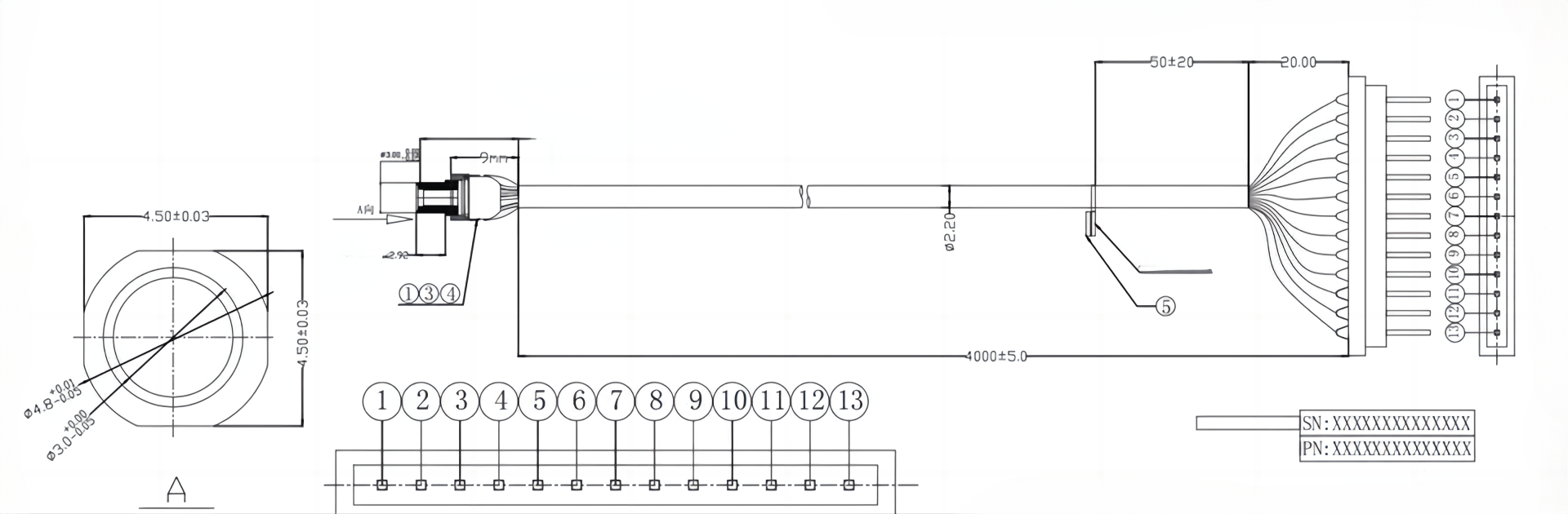

Structure Diagram
