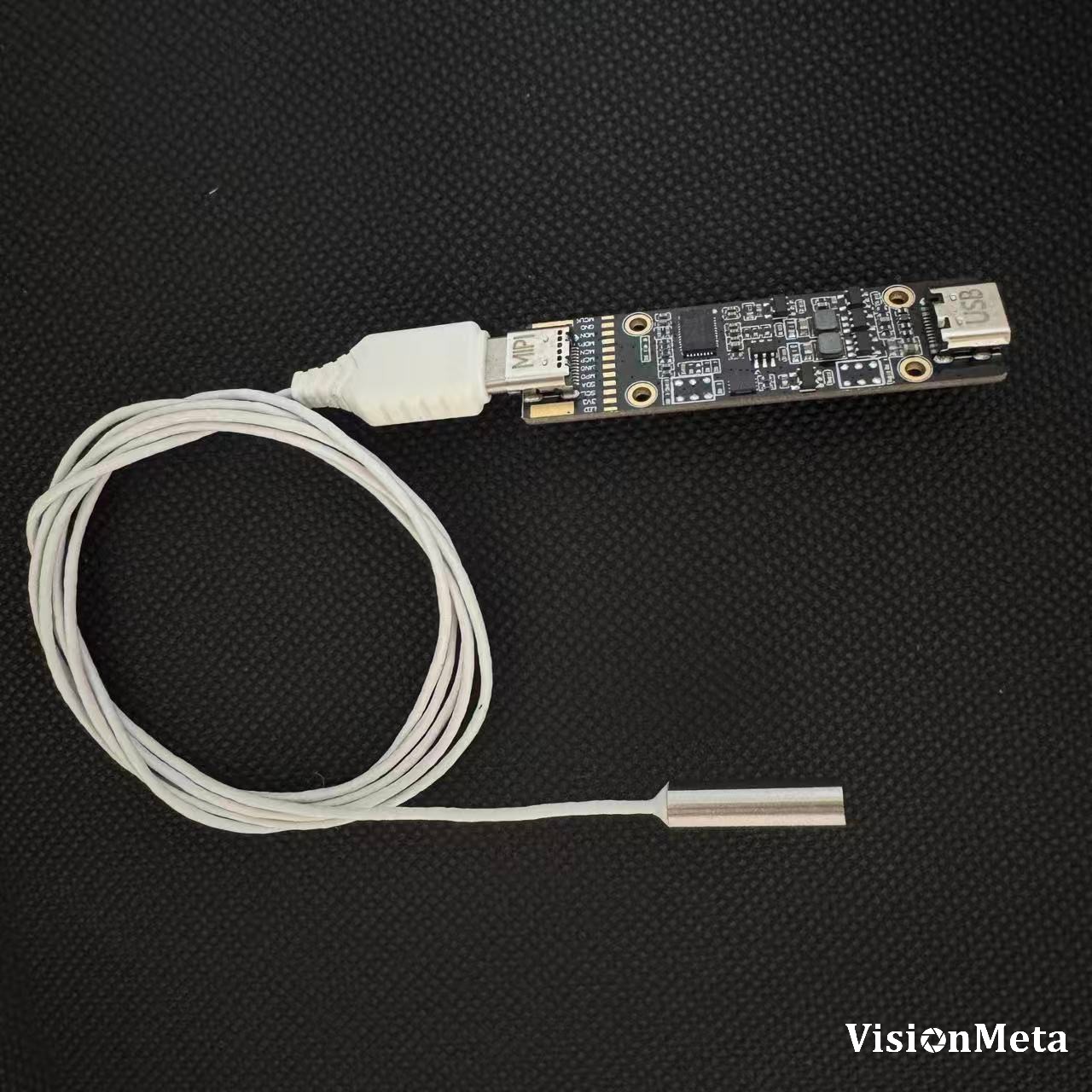

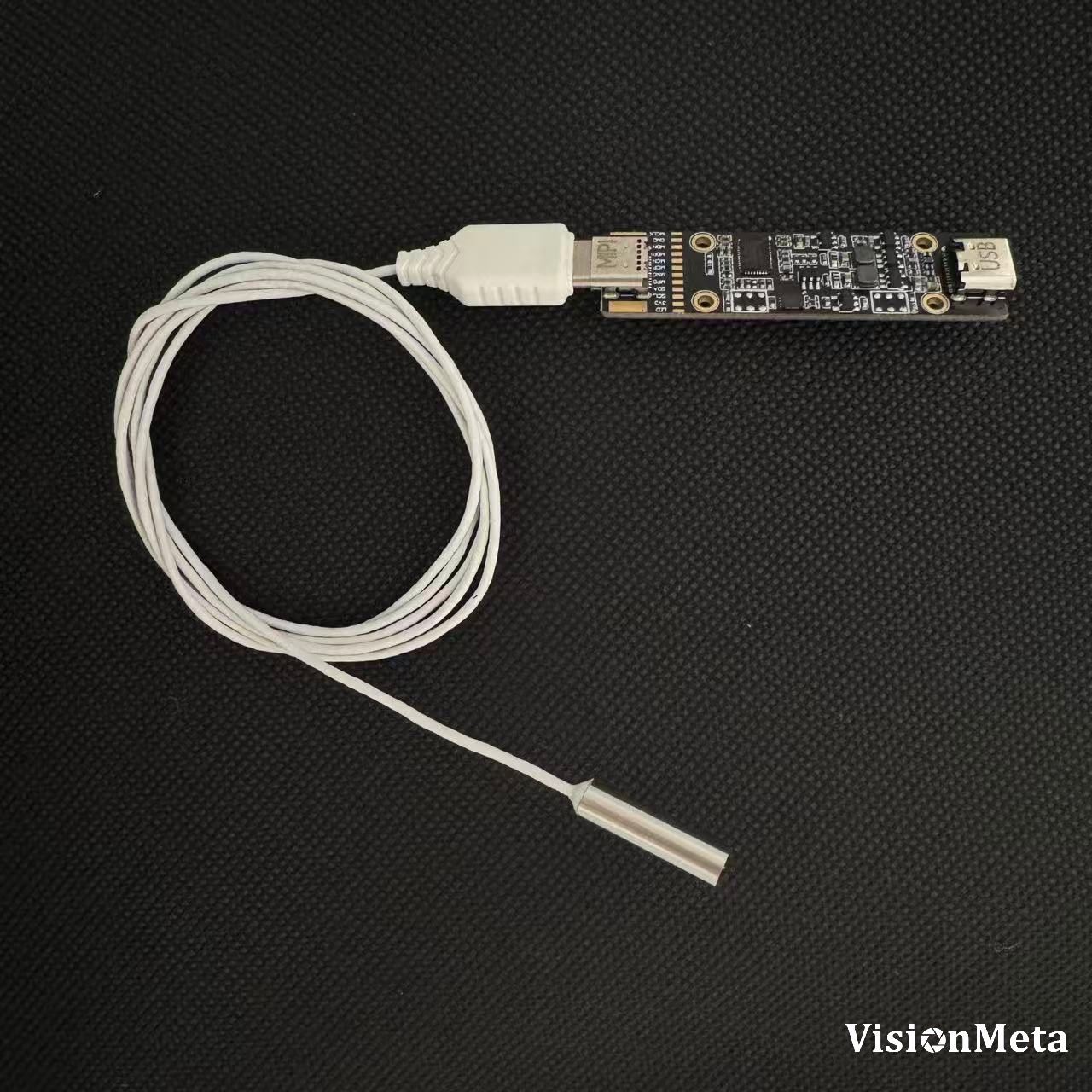

2MP 1/6Inch OV2740 Endoscope Camera Module 60fps for Medical.
| NO | Item | Specification |
| 1 | Module No. | VM-YJEOV2740X |
| 2 | Image Sensor | 1/6inch |
| 3 | Pixel Size | 1.4um X 1.4um |
| 4 | Image Area | 2728µm x 1549µm |
| 5 | Effective Pixel | 1920(H)X1080(V) |
| 6 | FOV | 80°/100°（Customize） |
| 7 | Diameter | 5.2mm/5.5mm |
| 8 | LED | 6PCS or None |
| 9 | Output Format | MJPEG / YUV2（YUYV） |
| 10 | Support Resolution and Frame Rate | 60fps 1080P YUV/MJPEG 60FPS VGA /MJPEG |
| 11 | S/N Radio | 38.3db |
| 12 | Dynamic Range | 73.3db |
| 13 | Sensitivity | 553mV/Lux-sec |
| 14 | Shutter Type | Electronic Rolling Shutter |
| 15 | Support Drive – Free Protocols | USB Video Class(UVC) USB2.0OTG |
| 16 | Interface | USB2.0 HS/FS |
| 17 | Auto White Balance | Support |
| 18 | Auto Gain Control | Support |
| 19 | Auto Exposure Control | Support |
| 20 | Adjustable Parameter | Brightness, Contrast Ratio, Color Saturation, Tone, Gamma, White Balance, Negative Contrast, Exposure Degree |
| 21 | Lens | HD/Micro |
| 22 | Powrer Support | USB BUS POWER 5P |
| 23 | Working Temperature | -20℃ ～ 70 ℃ |
| 24 | Working Voltage | DC5V |
| 25 | Working Current | 100mA |
| 26 | System Support | WinXP/Vista/Win7/Win8.1/Win10/Linux with UVC（above linux-2.6.26）Android 4.0 or above with UVC |
Available to choose：
- 5.0mm FPC

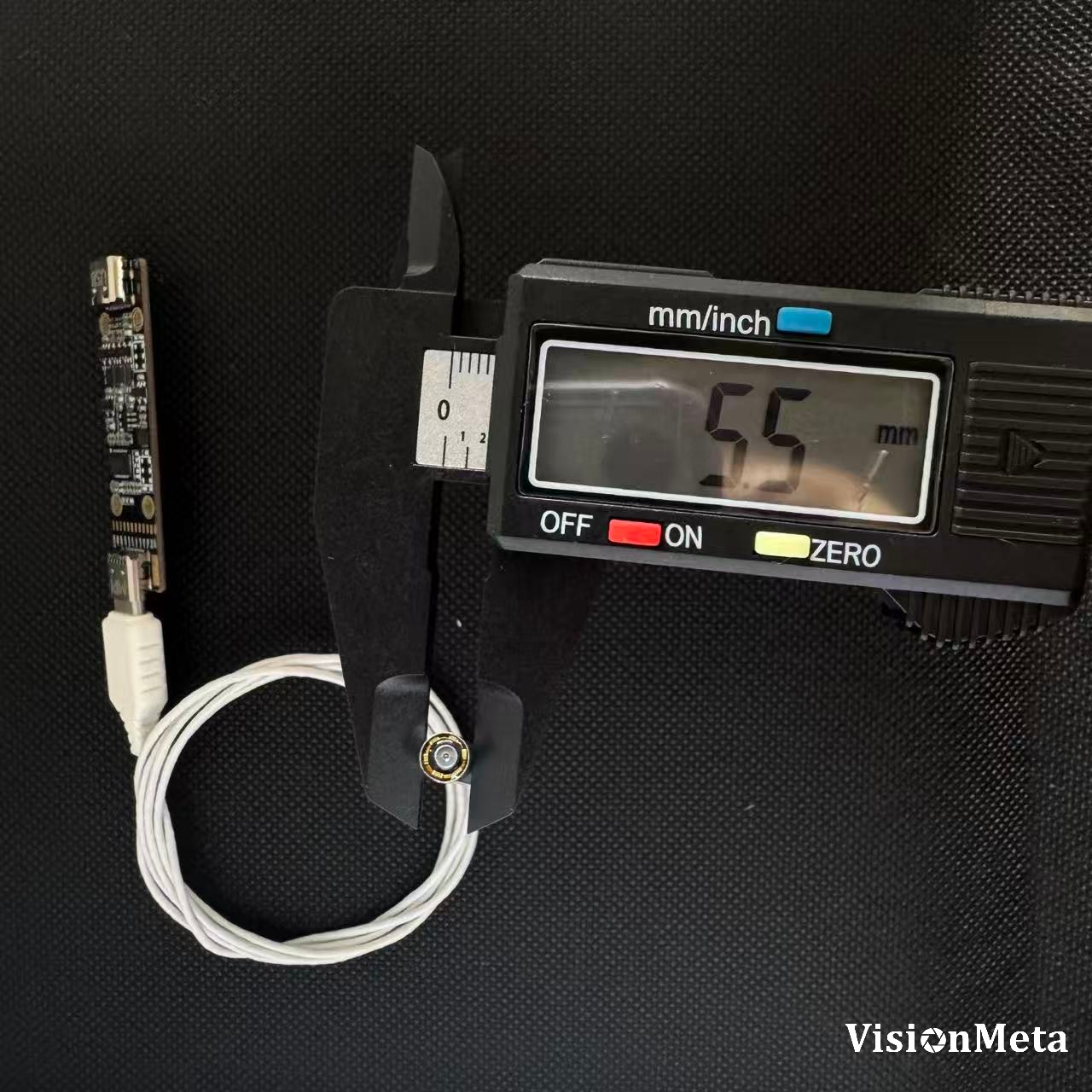

- 5.5mm without steel tube
- 5.2mm with steel tube
- 5.5mm with steel tube
- 6.0mm with steel tube
