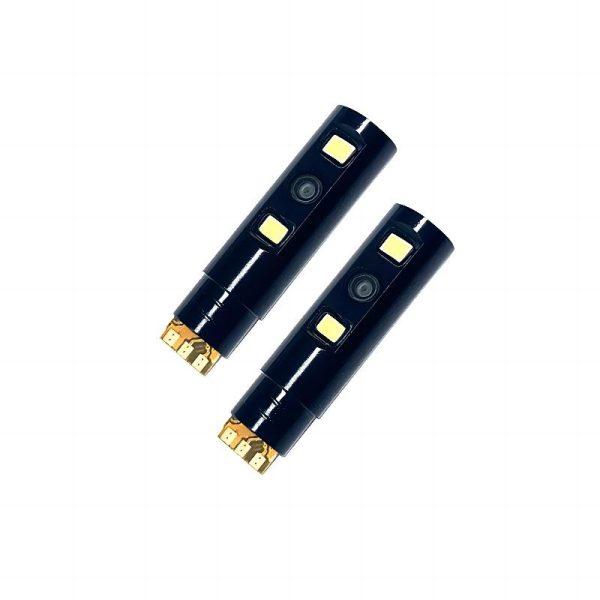

1MP 6mm OV9734 Endoscope Camera Side View Waterproof 88°FOV
Small Endoscope size with 6mm diameter, 23mm in total module length.
The unique single-head side-viewing endoscope borescope module provides a unique viewing angle and can detect the corner field of view for some fields.
88° FOV and 5mm-50mm depth of field, fixed focus lens with 2pcs bright adujstable LED, 30fps at max 1280*720 resolution.

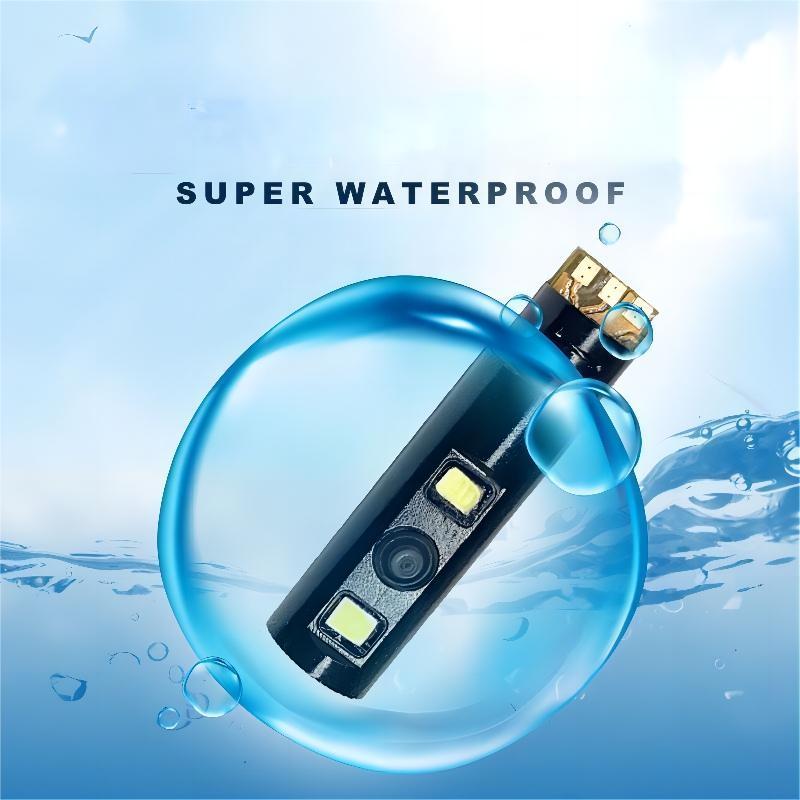

Highly waterproof with IP67 level.
This makes it ideal for use in small cameras for industrial inspection applications such as car inspection, tube borescope, and other fields.
| NO | Item | Specification |
| 1 | Module NO. | VM-EN60SV-RT |
| 2 | Sensor | OV9734 |
| 3 | Lens Size | 1/9″ |
| 4 | Maximum Pixels | 0.16 MP |
| 5 | Maximum Effective Resolution | 1280X720 |
| 6 | Data Format | MJPG ,YUY2 |
| 7 | Pixel Size | 1.4um*1.4um |
| 8 | Dynamic Range | 68dB |
| 9 | S/N Ratio | 44dB |
| 10 | Min Lux | 0.03Lux |
| 11 | Relative Illumination (Sensor) | 55% |
| 12 | Lens FOV | 88° |
| 13 | F/No | 2.8mm |
| 14 | EFL | 2.5 mm |
| 15 | DOF | 5mm-30mm |
| 16 | Lens Construction | 3P+IR |
| 17 | Focus | Fixed focus |
| 18 | Frame Rate | MJPG： 640X480 (30fps) 960X720 (30fps) 1280X720 (30fps) YUY2: 640X480 (30fps) 960X720 (15fps) 1280X720 (10fps) |
| 19 | IR Filter | 650±10nm |
| 20 | TV DistortionfiS | <-1% |
| 21 | UVC | USB Video Class(UVC) |
| 22 | OTG | USB2.0 OTG |
| 23 | Voltage | 5V |
| 24 | Working Current | 100mA |
| 25 | AGC/AEOWhiter balance | Auto |
| 26 | Module Size | 23mm * 6.0mmX6.0mm |
| 27 | Working Temperature | —10°C to 70°C |
| 28 | Storage Temperature | —20°C to 80°C |
| 29 | System Compatibility | Windows 2000 or Windows XP or Vista of Windows7/8/10 MAC OSX El captain 10.114 and Luinx Android |

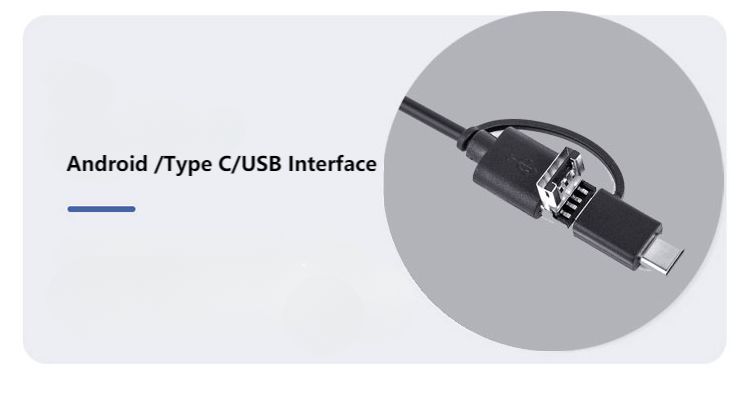

Android /Type C/USB Interface
Adopt the design of Android, Type C and USB three interfaces in one, which is more applicable to a wider range of fields.

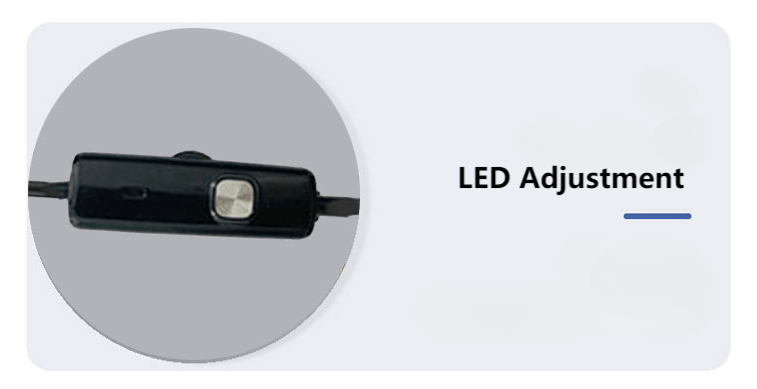

LED Adjustment
The brightness of the LED can be adjusted according to actual needs.

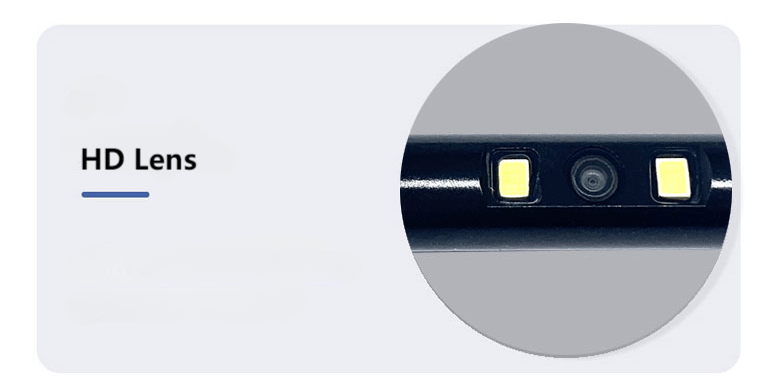

HD Lens
The lens is equipped with two bright LEDs, which can provide a better light source.

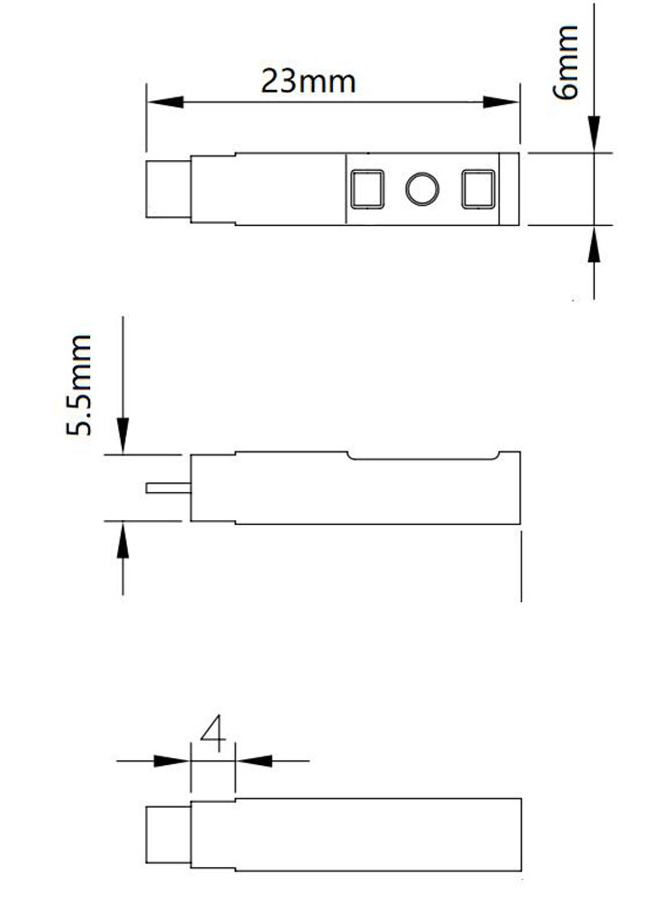

Structure Diagram
