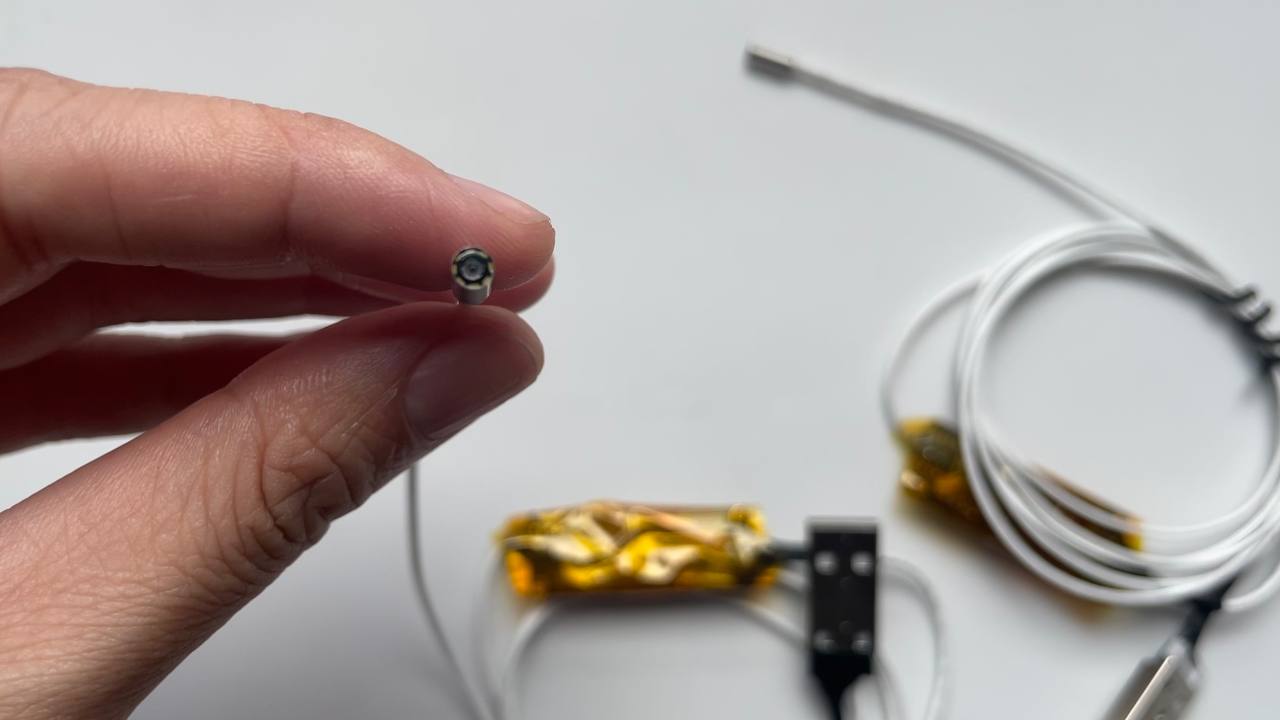

1MP 3.2mm with Steel Tube OV9734 720P Micro Endoscope for Medical.
High-performance image processing decoder board with USB2.0 interface, 3.2mm super micro diameter with steel tube, using CMOS OV9734 1/9″ sensor, commonly and perfectly applied in medical areas.
FOV, Depth of field, LED, and other specific requirements are available to be customized.
Application for Industrial endoscopic, for Medical endoscope. such as Endoscopy of the digestive tract; Hysteroscopy; Anorectal endoscopy; Urinary endoscopy; Disposable endoscopy, and so on.
| NO | Item | Specification |
| 1 | Module No. | VM-EOV9734 |
| 2 | Image Sensor | 1/9 inch |
| 3 | Pixel Size | 1.75um X 1.75um |
| 4 | Image Area | 1972μm X 1008μm |
| 5 | Effective Pixel | 1280(H)X720(V) |
| 6 | Output Format | MJPEG / YUV2（YUYV） |
| 7 | Support Resolution and Frame Rate | 25fps VGA YUV/MJPEG 15fps QVGA YUV/MJPEG |
| 8 | S/N Radio | 36db |
| 9 | Dynamic Range | 42db |
| 10 | Sensitivity | 600mV/Lux-sec |
| 11 | Shutter Type | Electronic Rolling Shutter |
| 12 | Min.Lux | 1 Lux |
| 13 | Support Drive – Free Protocols | USB Video Class(UVC) USB2.0OTG |
| 14 | Interface | USB2.0 High Speed |
| 15 | Auto White Balance | Support |
| 16 | Auto Gain Control | Support |
| 17 | Auto Exposure Control | Support |
| 18 | Adjustable Parameter | Brightness, Contrast Ratio, Color Saturation, Tone, Gamma, White Balance, Negative Contrast, Exposure Degree |
| 19 | Lens | HD/Auto Focus |
| 20 | Powrer Support | USB BUS POWER 5P |
| 21 | Working Temperature | —20℃ ～ 70 ℃ |
| 22 | Working Voltage | DC5V |
| 23 | Storage Temperature | 0～50℃ |
| 24 | System Support | WinXP/Vista/Win7/Win8.1/Win10/Linux with UVC（above linux-2.6.26）Android 4.0 or above with UVC |
