16MP USB Camera Module Extra HD Auto Focus with Sony IMX298

Feature
⦁ Sensor Type: 16MP USB Camera Module with Sony IMX298
⦁ Pixel Size: 1.12um x 1.12um
⦁ Optical Size: 1/2.8”
⦁ Active Pixels: 4656 H × 3496 V ⦁ Focus Type: Auto Focus ⦁ High sensitivity, High quality images

16MP USB Camera Module is a high-performance, 16MP color Autofocus USB camera module.

This small form factor camera module is based on a 1/2.8″ Sony IMX298 CMOS image sensor with 1.12μm pixel size, capturing with high sensitivity and low noise performance.

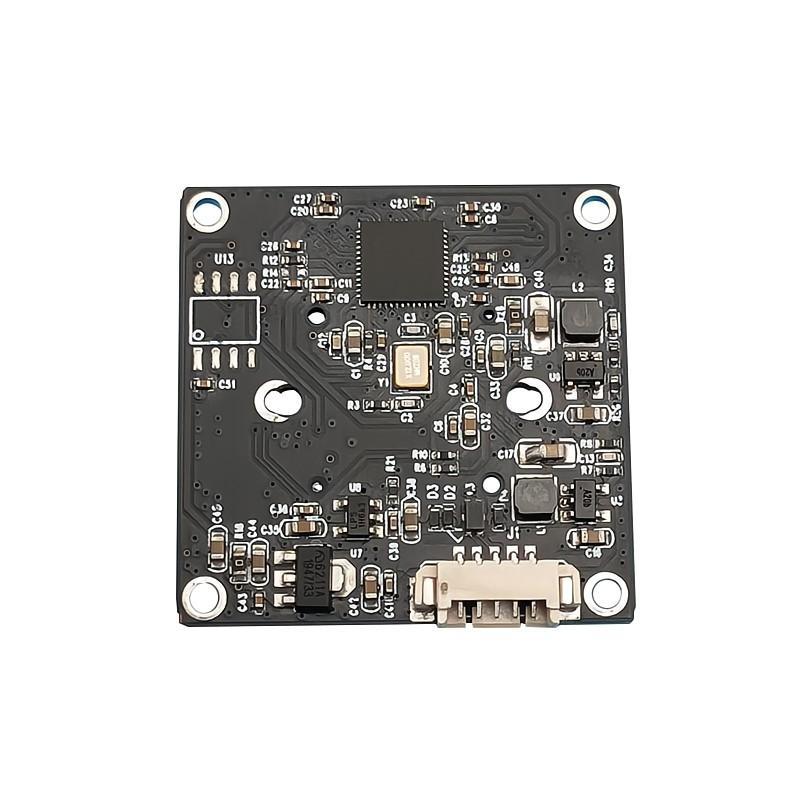

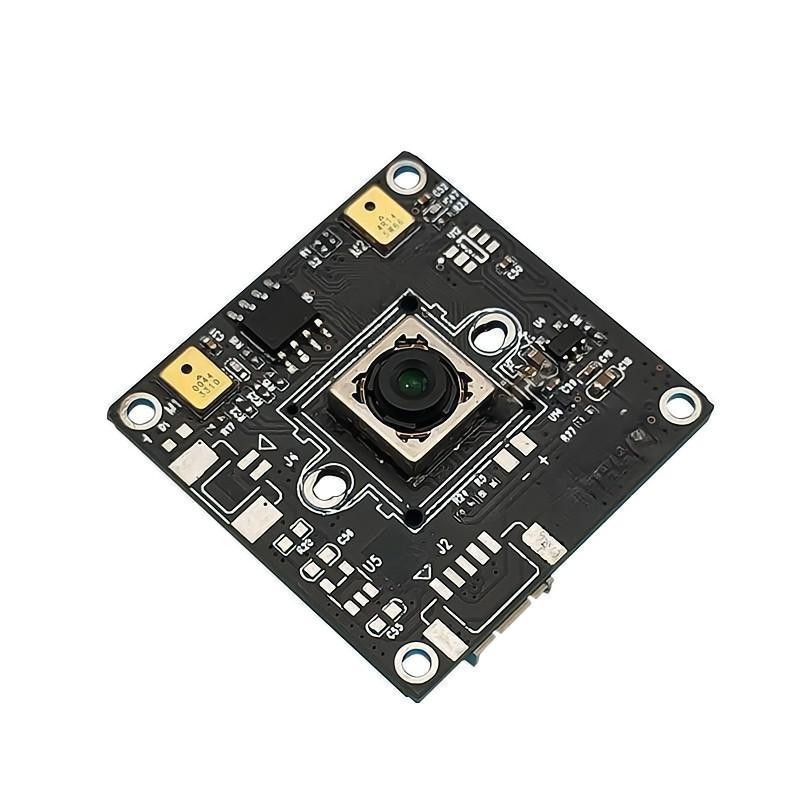

It is a flex PCB camera module and the VCM Autofocus lens is soldered directly onto the board.

NO Item Specification
1 Module No. VM-A16-1
2 Image Sensor IMX298
3 Interface USB
4 Effective Pixel 4656*3496
5 Material PCB
6 Focus Auto Focus
7 Weight 66(g)
8  Application  Conference Camera,  High-definition Surveillance,Recognition System, Medical Equipment, Scan Device, and so on.



NO Item Specification
1 Image Sensor IMX298
2 Sensor Size 1/2.8″ CMOS
3 Active Array Size 4656×3496 16MP
4 Pixel Size 1.12um*1.12um
5 S/N Ratio /
6 Dynamic Range /
7 AGC Auto
8 White balance Auto
9 AEC Auto
10 Output Formats MJPG/YUY2
11 Maximum Resolution & Frame Rate MJPG:
4656×3496 (16M)@10fps
4208×3120 (13M) @10fps
4000×3000 (12M)@10fps
3264×2448 (8M)@10fps
2592×1944 (5M)@10fps
2320×1744 (4M)@30fps
2048×1536 (3M)@30fps
1920×1080 (2M)@30fps
1600×1200@30 fps
1280×960@30fps
1280×720@30fps
1024×768@30fps
800×600@30fps
640×480@30 fps
YUV:                         1024×768@10fps
800×600@30fps
640×480@30fps
12 Digital Interface USB2.0 5-Pin 1.25mm
13  Power Requirements USB5V±5%
14 Max Work Current Max 250mA
15 Lens 1/2.8″ M6.8 6E
16 Focus Type Auto Focus
17 Field of View (D):75° (H):64° (V):48°
18 PCB Size 32*32*1.6mm
19 Module Size 32*32*6.75mm
20 Operating Temperature -10~50°C
21  Storage Temperature -20~70°C
22  Support System Windows7/8/10, Linux with UVC driver /Android

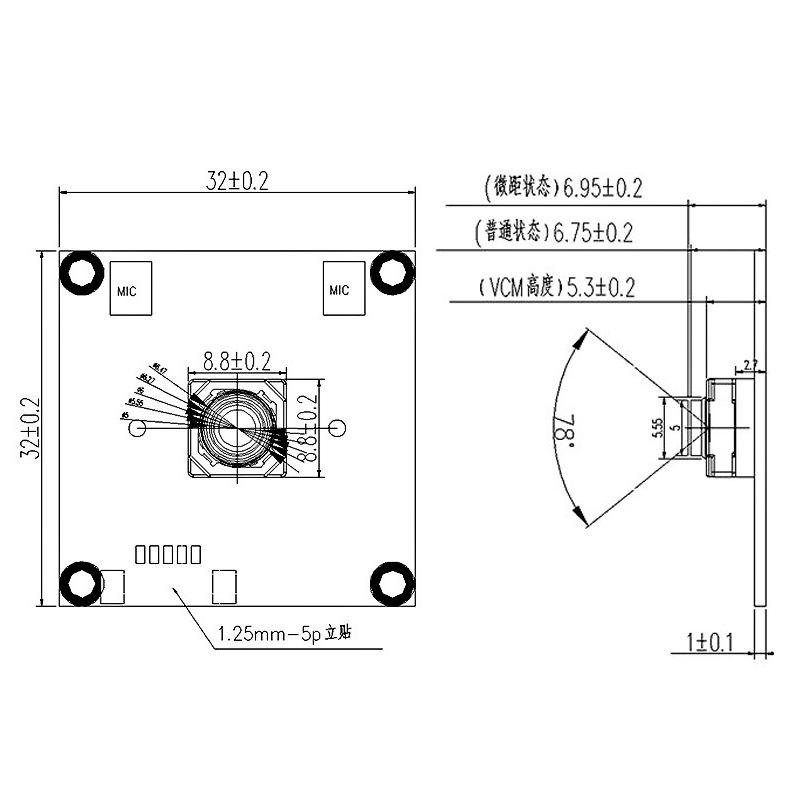

Structure Diagram
16mp usb camera module
